420mm 220mm Pylon Adapter Lower Limb Prosthetic Components

5 Pcs
MOQ
USD 26~7 Per Pcs
Price
420mm 220mm Pylon Adapter Lower Limb Prosthetic Components
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel 17-4 / Titanium GR5 / Aluminium 7075
Max Load: 100Kg 220LBS (SS&AL) / 125Kg 275LBS (Ti)
Proximal Connection: Pyramid Adaptor
Sample: Available
OEM: Available
Warranty: Two Years
Logo Print: Available
Basic Infomation
Place of Origin: CHINA
Brand Name: HK PROSTHETIC ORTHOTICS
Certification: CE And ISO13485
Model Number: CHL-420(S)(T)(AL) / CHL-220(S)(T)(AL)
Payment & Shipping Terms
Packaging Details: Shaped EPE With Cartons
Delivery Time: Within 7 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 1000000 Pcs Per Year
Product Description

Lower Limb Prosthetic Components--Pylon Adaptor length for 420mm and 220mm



The tube adapters are available in 2 different lengths 420mm and 220mm. For higher loads in transtibial prostheses, a tube adapter with Ø 30 mm should be used.

• With Aluminum alloy tube ø 30 mm
• Aluminum alloy tube in Three color(blueSilverblack)
• With 4 adjustment set screws M8x12 / M8*14



Product Number Material Standard Part Weight Weight Limit
CHL—420S S.Steel 420mm 308g 220lbs
CHL—220S S.Steel 220mm 200g 220lbs
CHL—420T Titanium 420mm 270g 275lbs
CHL—220T Titanium 220mm 167g 275lbs
CHL—420AL Aluminum alloy 420mm 278g 220lbs
CHL—220AL Aluminum alloy 220mm 178g 220lbs

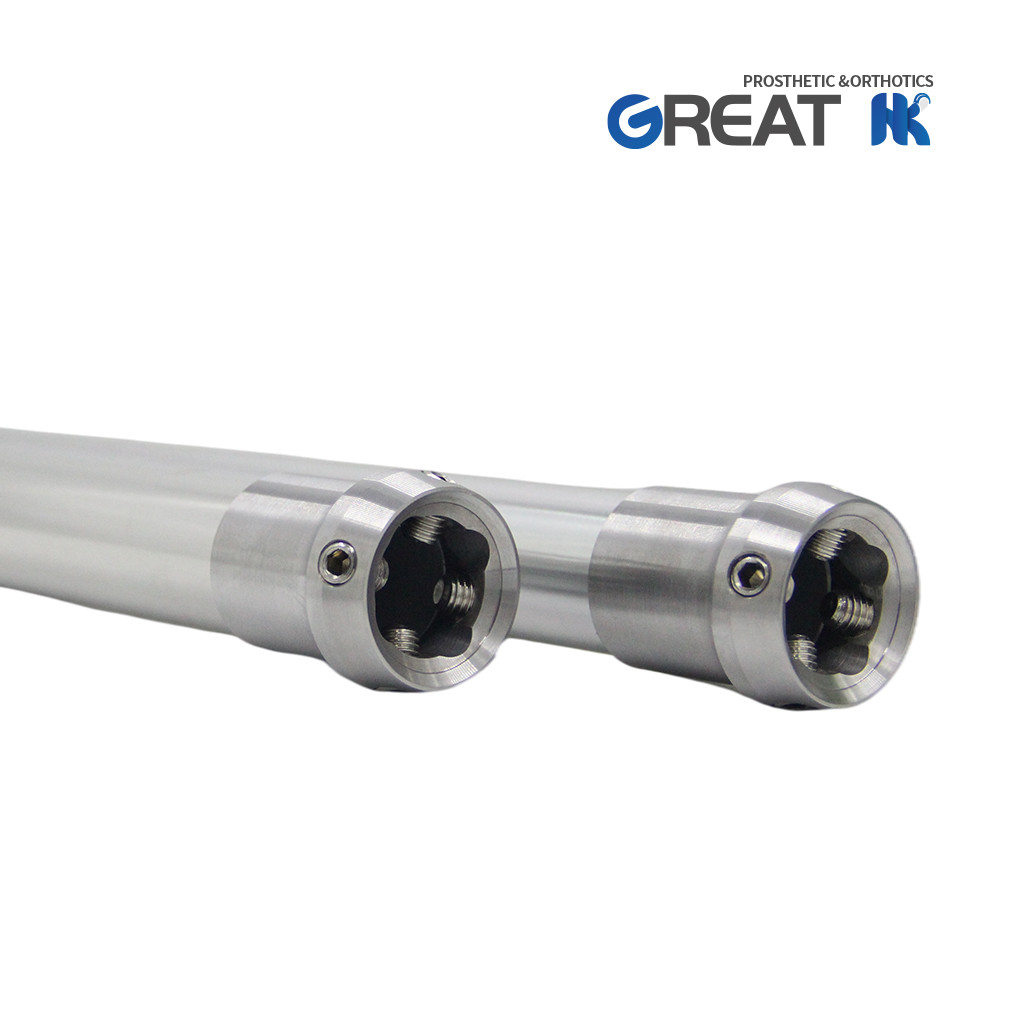

420mm 220mm Pylon Adapter Lower Limb Prosthetic Components 0

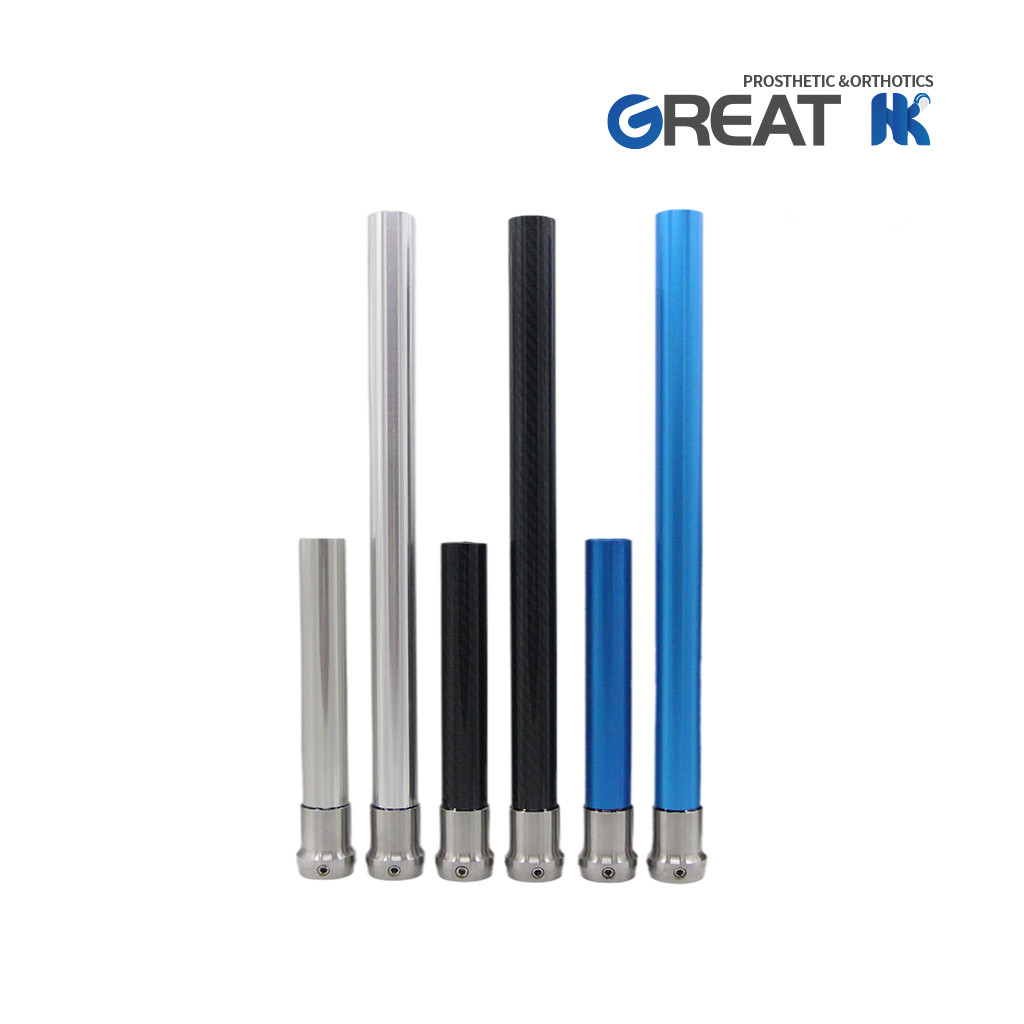

420mm 220mm Pylon Adapter Lower Limb Prosthetic Components 1

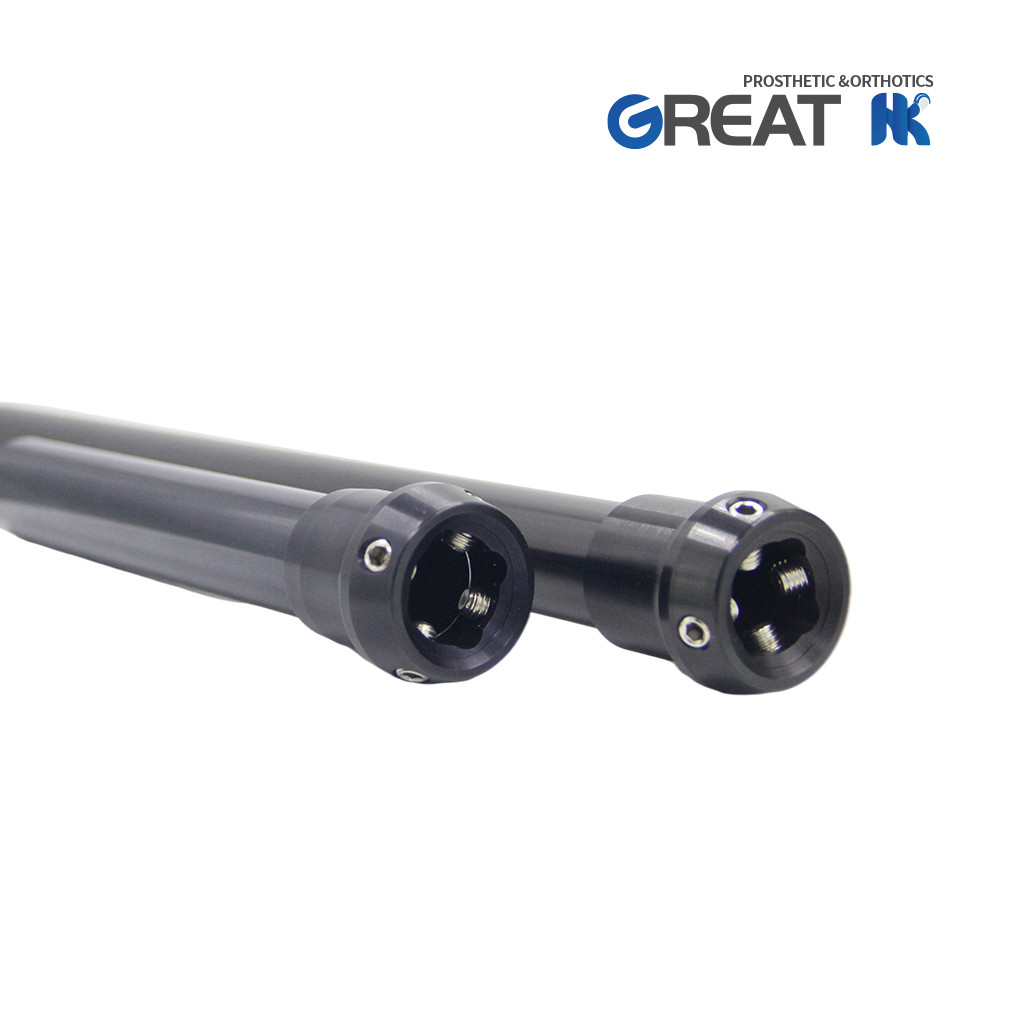

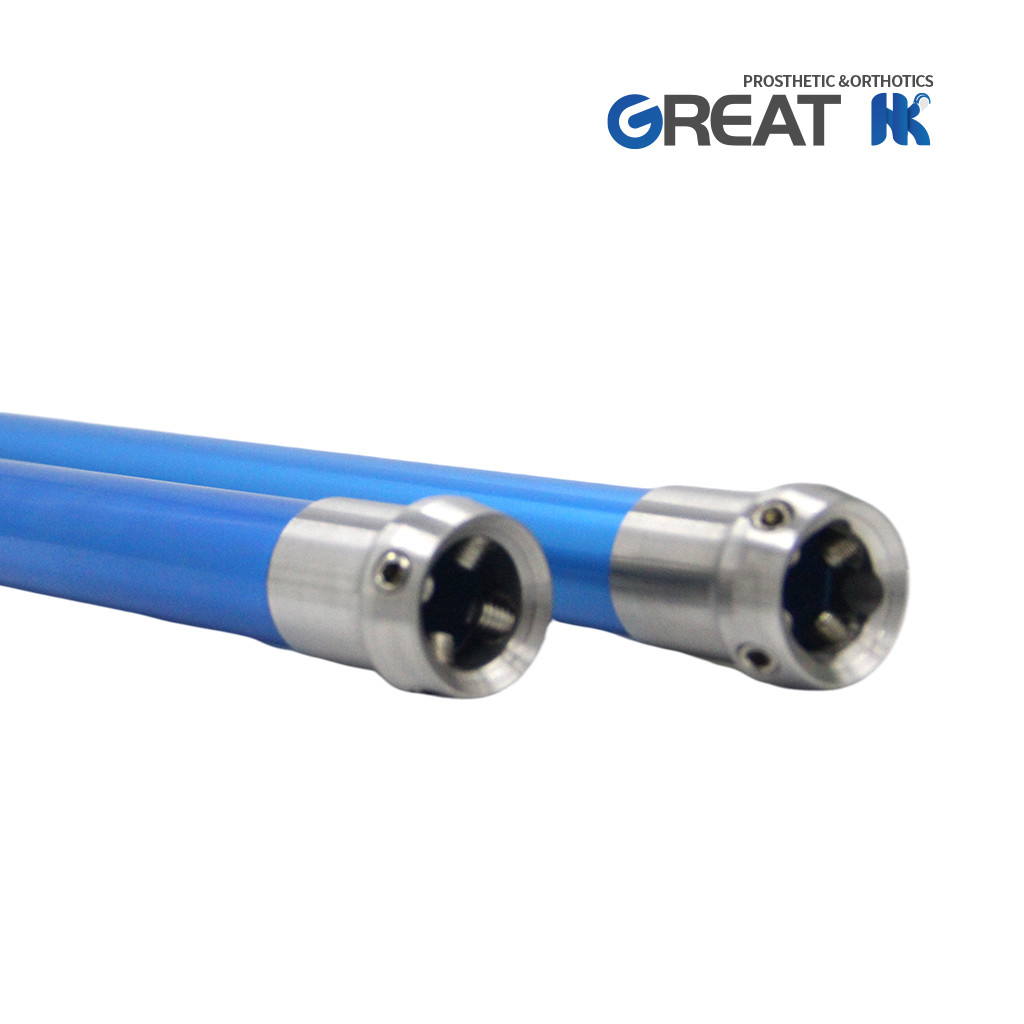

420mm 220mm Pylon Adapter Lower Limb Prosthetic Components 2420mm 220mm Pylon Adapter Lower Limb Prosthetic Components 3420mm 220mm Pylon Adapter Lower Limb Prosthetic Components 4

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer, providing OEM & ODM service.

Q: How many years since your company start this business?

A: We began manufacturing prosthetics and orthotics parts since the year 2002.

Q: Did your factory Register for export and import?

A: Yes. We applied full range of documents for exportation and importation.

Q: Did your factory and products approved by any testing or certification?

A: yes. We applied CE and ISO13485 medical certification.

Q: May I apply to be one distributor or sole agent in our country to sell your products?

A: yes. This issue can be have a discussion.

Q: May I apply some free samples for testing before purchasing the full range of production?

A: Yes. sample order is acceptable. Also free sample order totally amount can’t be over USD 50.

Q: How to deal for sample order and regular order?

A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.

Q: How faster u can ship out the order?

A: For sample order normally within 3 days, regual order need to negotiate before every delivery issue settle down.

Q: Which way are acceptable for the payment?

A: TT/ Paypal / Western Union

Q: Can you provide us the best price?

A: Yes, each Item have differential pricing according to quantity.

Q:What’s your Quality warranty?

A:Regarding the the metal parts all for 2 years, For silicone is 0.5-1 year.

Q: Can we visit your factory?

A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.





420mm 220mm Pylon Adapter Lower Limb Prosthetic Components 5
