Aluminium 99lbs Children Prosthetic Knee Joint , Four Bar Hip Joint

5 Pcs
MOQ
USD 150~100 Per Pcs
Price
Aluminium 99lbs  Children Prosthetic Knee Joint , Four Bar Hip Joint
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Aluminium AA7075
Color: Red
Max Load: 45Kg(90Lbs)
Sample: Available
Warranty: Two Years
Basic Infomation
Place of Origin: CHINA
Brand Name: HK PROSTHETIC ORTHOTICS
Certification: CE And ISO13485
Model Number: 3R17C
Payment & Shipping Terms
Packaging Details: Shaped EPE With Cartons
Delivery Time: Within 7 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 1000000 Pcs Per Year
Product Description

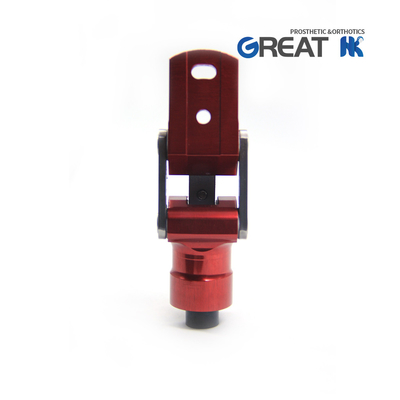

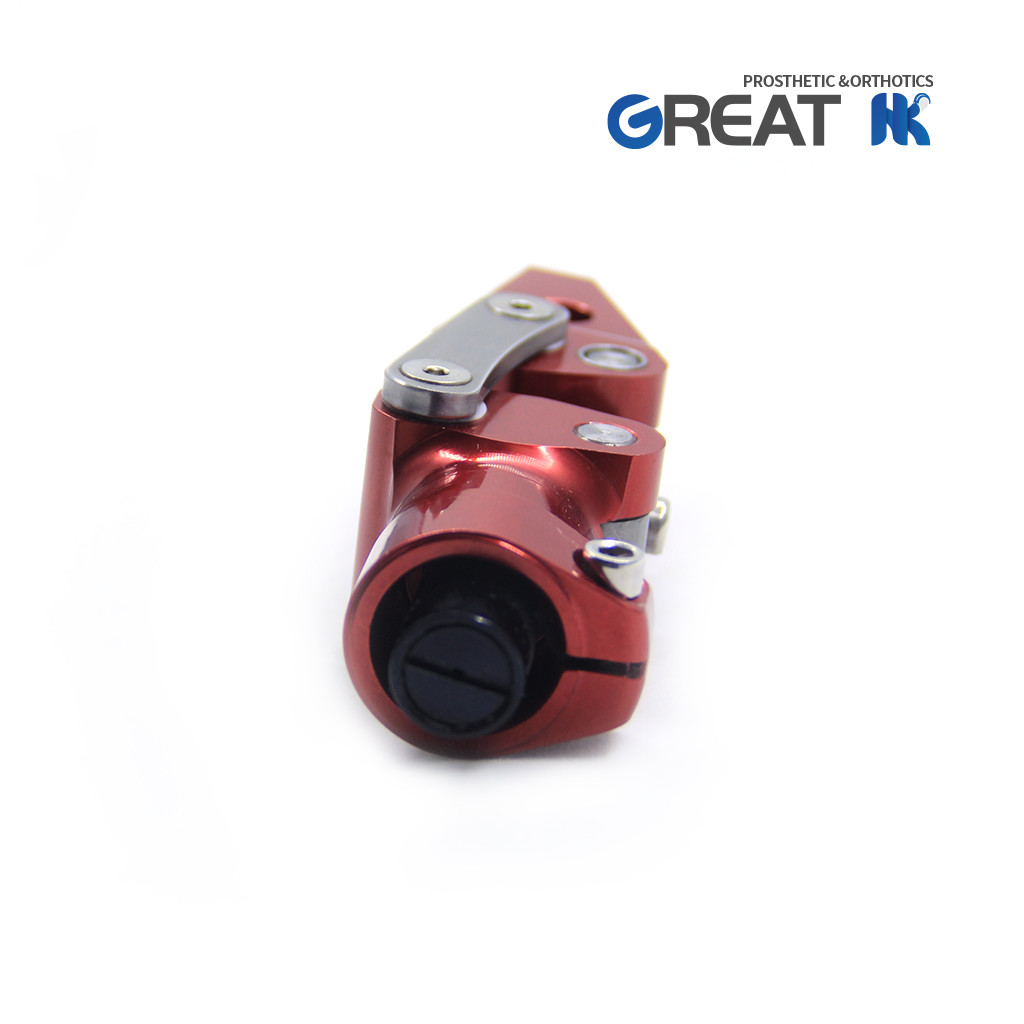

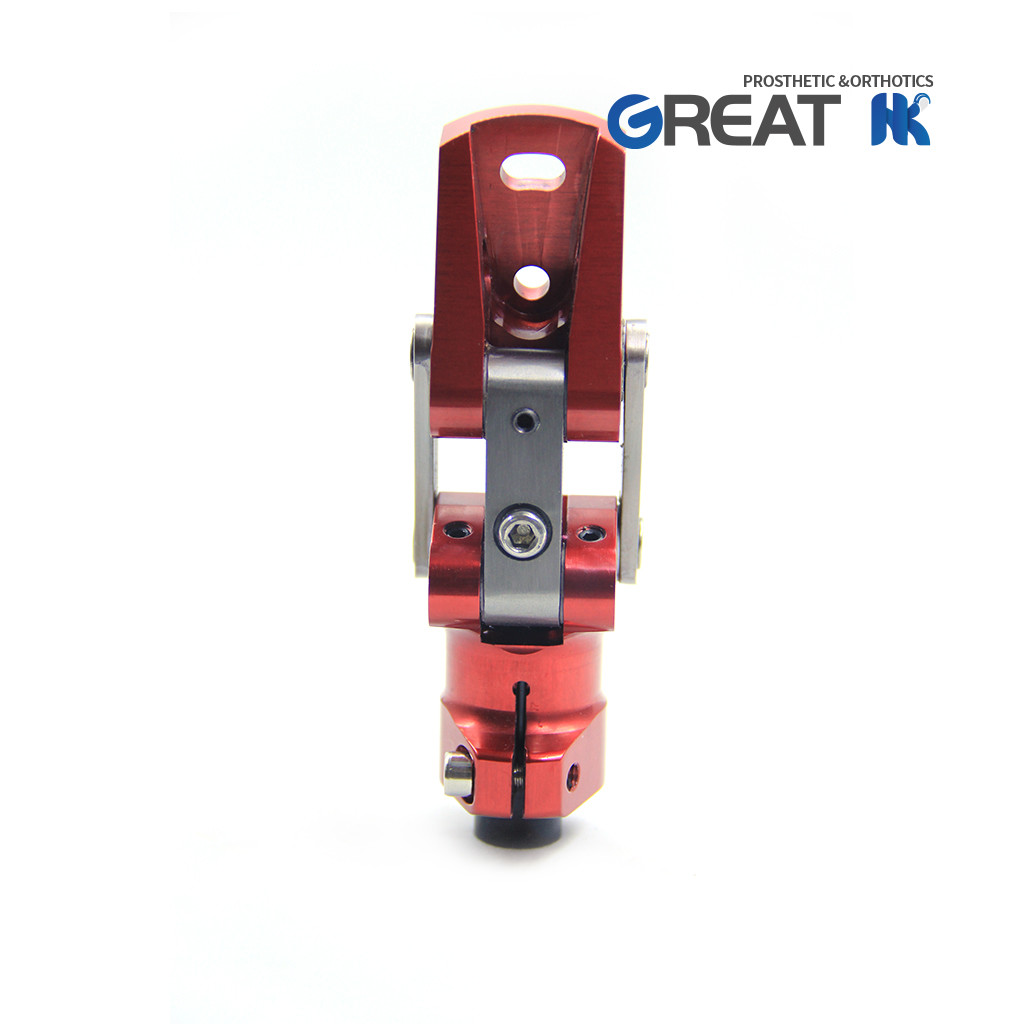

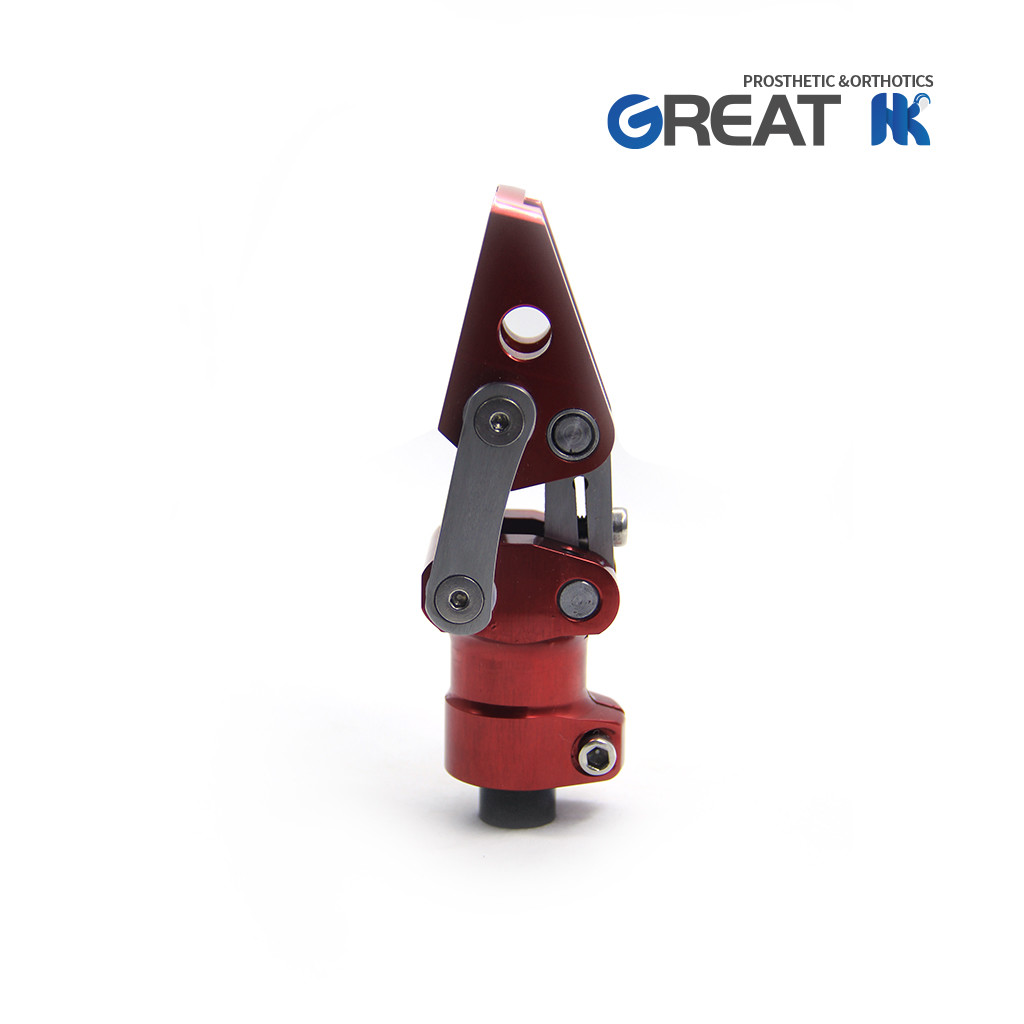

Prosthetic Joint-Four Bar Hip Joint (Pediatric)


• Polycentric • With integrated extension assist


Recommendation:
• For trans-femoral amputees• With moderate functional levels
• Medium stance phase stability• Medium swing phase control
• Suitable also for hip disarticulation amputees
• Not suitable for amputees with higher functional levels


Description:
Upper and lower joint section is connected with linkage bars. The
stance phase stability is achieved with the polycentric kinematic
( adjustment of the instant center of rotation by adjustment of
the stop). The stepless adjustment of the axis friction and of the
extension assist spring controls the swing phase.


Technical Data:
• Knee flexion range: approx. 120°



Product Number Material Part Weight Weight Limit
3R17C Aluminum 385g 45Kg/99lbs






Aluminium 99lbs  Children Prosthetic Knee Joint , Four Bar Hip Joint 0




Aluminium 99lbs  Children Prosthetic Knee Joint , Four Bar Hip Joint 1Aluminium 99lbs  Children Prosthetic Knee Joint , Four Bar Hip Joint 2Aluminium 99lbs  Children Prosthetic Knee Joint , Four Bar Hip Joint 3

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer, providing OEM & ODM service.

Q: How many years since your company start this business?

A: We began manufacturing prosthetics and orthotics parts since the year 2002.

Q: Did your factory Register for export and import?

A: Yes. We applied full range of documents for exportation and importation.

Q: Did your factory and products approved by any testing or certification?

A: yes. We applied CE and ISO13485 medical certification.

Q: May I apply to be one distributor or sole agent in our country to sell your products?

A: yes. This issue can be have a discussion.

Q: May I apply some free samples for testing before purchasing the full range of production?

A: Yes. sample order is acceptable. Also free sample order totally amount can’t be over USD 50.

Q: How to deal for sample order and regular order?

A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.

Q: How faster u can ship out the order?

A: For sample order normally within 3 days, regual order need to negotiate before every delivery issue settle down.

Q: Which way are acceptable for the payment?

A: TT/ Paypal / Western Union

Q: Can you provide us the best price?

A: Yes, each Item have differential pricing according to quantity.

Q:What’s your Quality warranty?

A:Regarding the the metal parts all for 2 years, For silicone is 0.5-1 year.

Q: Can we visit your factory?

A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.
