SS 17-4 M36 Thread Connection Prosthetic Knee Joint Mechanical Four Bar

10pcs
MOQ
USD 150~110 Per Pcs
Price
SS 17-4 M36 Thread Connection Prosthetic Knee Joint Mechanical Four Bar
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Aluminium7075 / SS 17-4
Connections: KD
Weight: 660g
Weight Limit: 125KG/ 275LBS
Maximum Knee Flexion Angle: 120°
Proximal Connection: M36 Thread Adaptor
Distal Connection: Pylon Adaptor 30mm
Basic Infomation
Place of Origin: CHINA
Brand Name: HK PROSTHETIC ORTHOTICS
Certification: CE And ISO13485
Model Number: K09-THL
Payment & Shipping Terms
Packaging Details: Shaped EPE With Cartons
Delivery Time: Within 7 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Pcs Per Year
Product Description

Prosthetic Manual Lock Knee Joint-Polycentric Four Bar Linkage Prosthetic Knee Joint Mechanical Aluminium7075



K09AL knee joint is a polycentric knee that is best suited to be used for low functional level and high need for safety. The adjustable lock secures the knee in extension. Deblock of flexion via lock cable. Self-acting lock at full extension with the help of the extension assist. The frame construction is made of superlight aluminum alloy and the 4-bar linkage is made of aircraft alloy (AA7075) or Titanium . The proximal attachment has A-P slide adjustment.Optional adapters are pyramid adapter (for AK) and J adapter (for KD).



Product Number Material Standard Part Weight Weight Limit
K09—THL Aluminum Thread M36 660g 125Kg / 275lbs

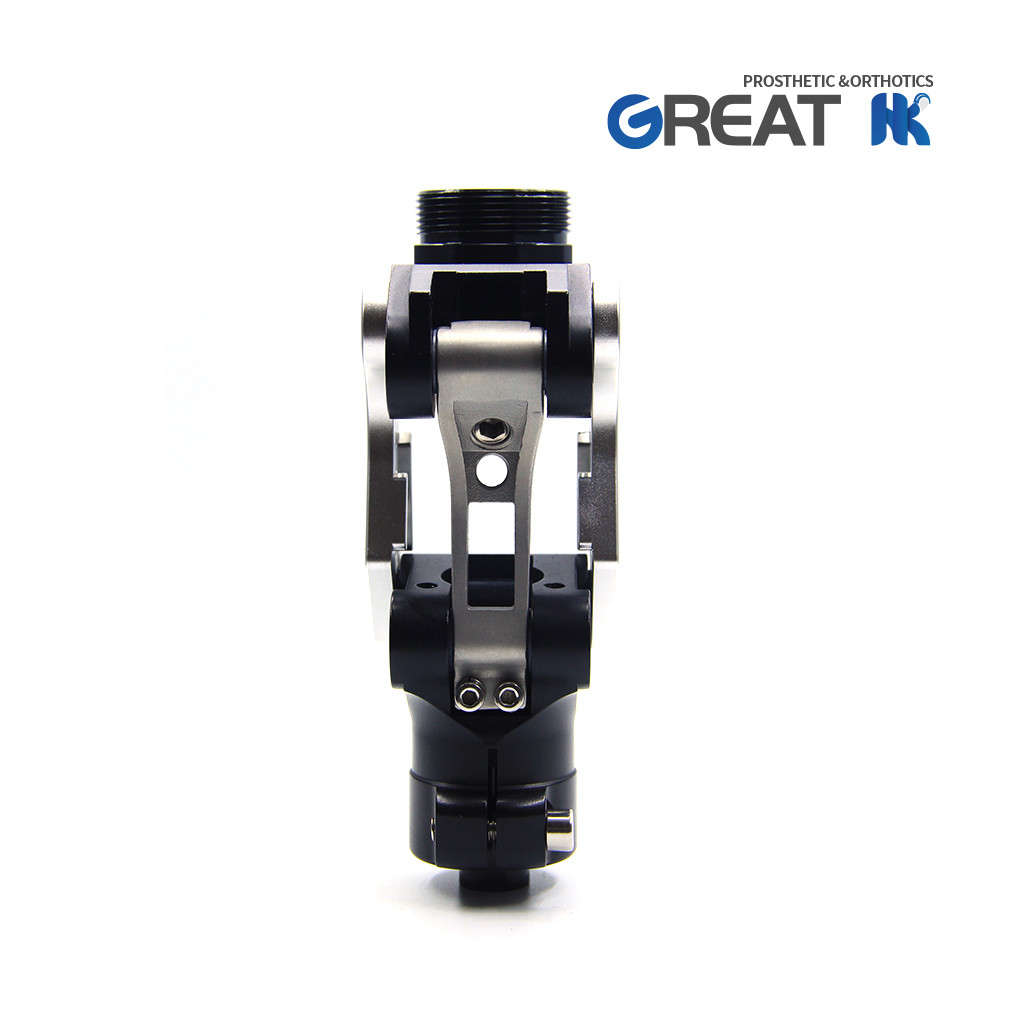

SS 17-4 M36 Thread Connection Prosthetic Knee Joint Mechanical Four Bar 0

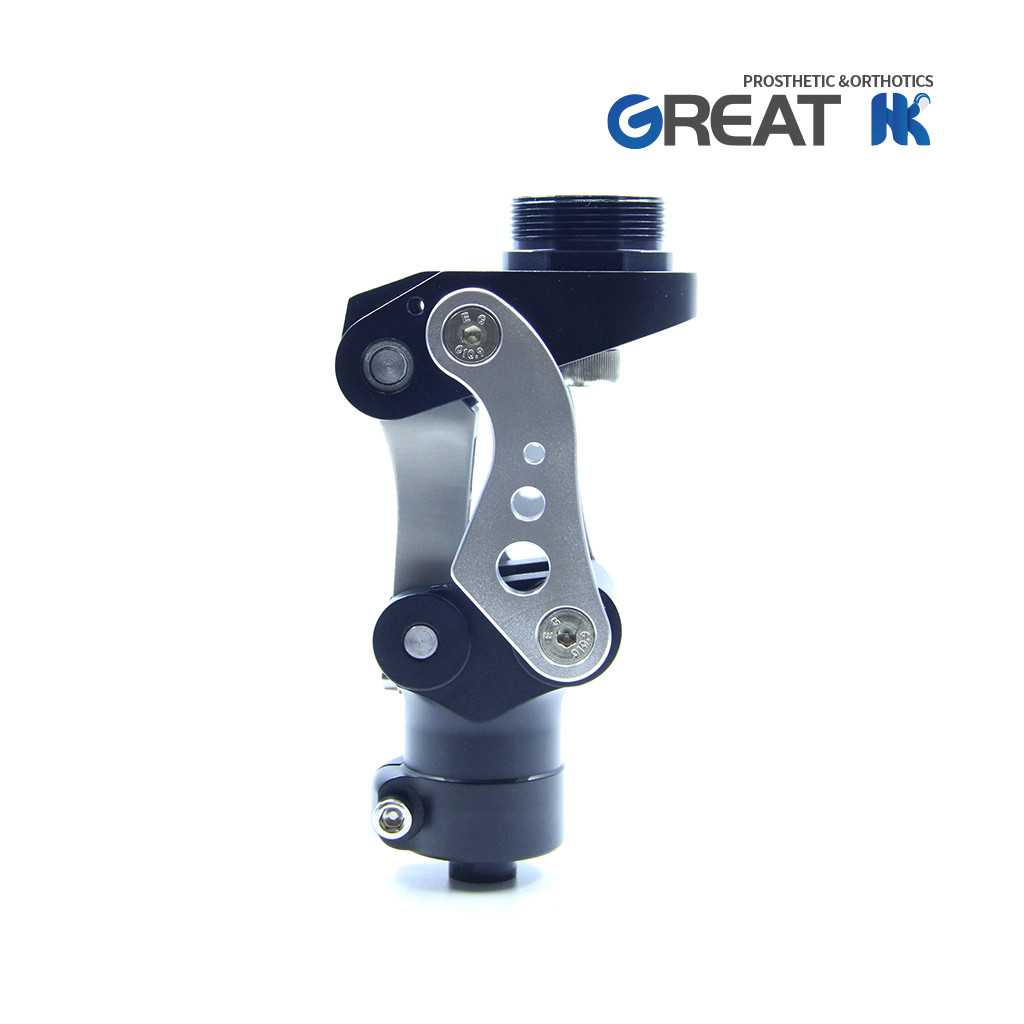

SS 17-4 M36 Thread Connection Prosthetic Knee Joint Mechanical Four Bar 1

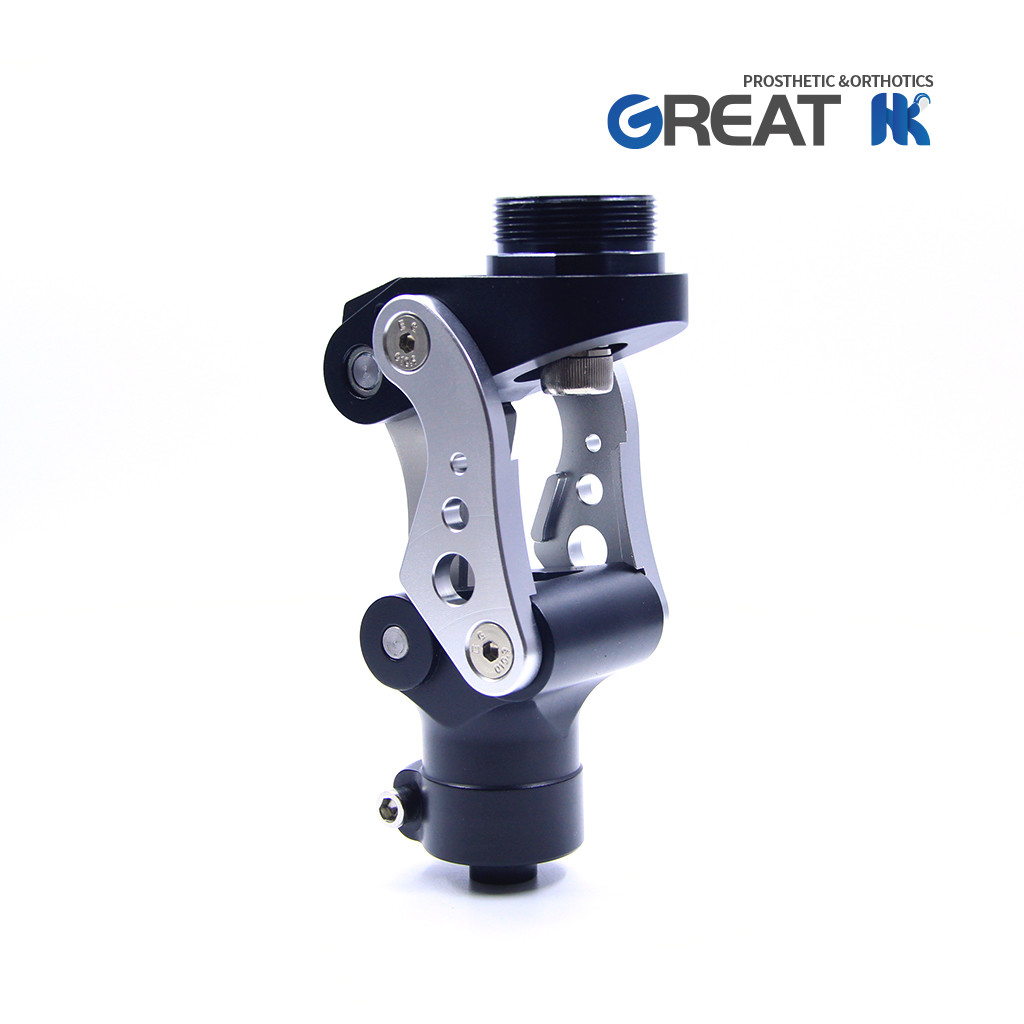

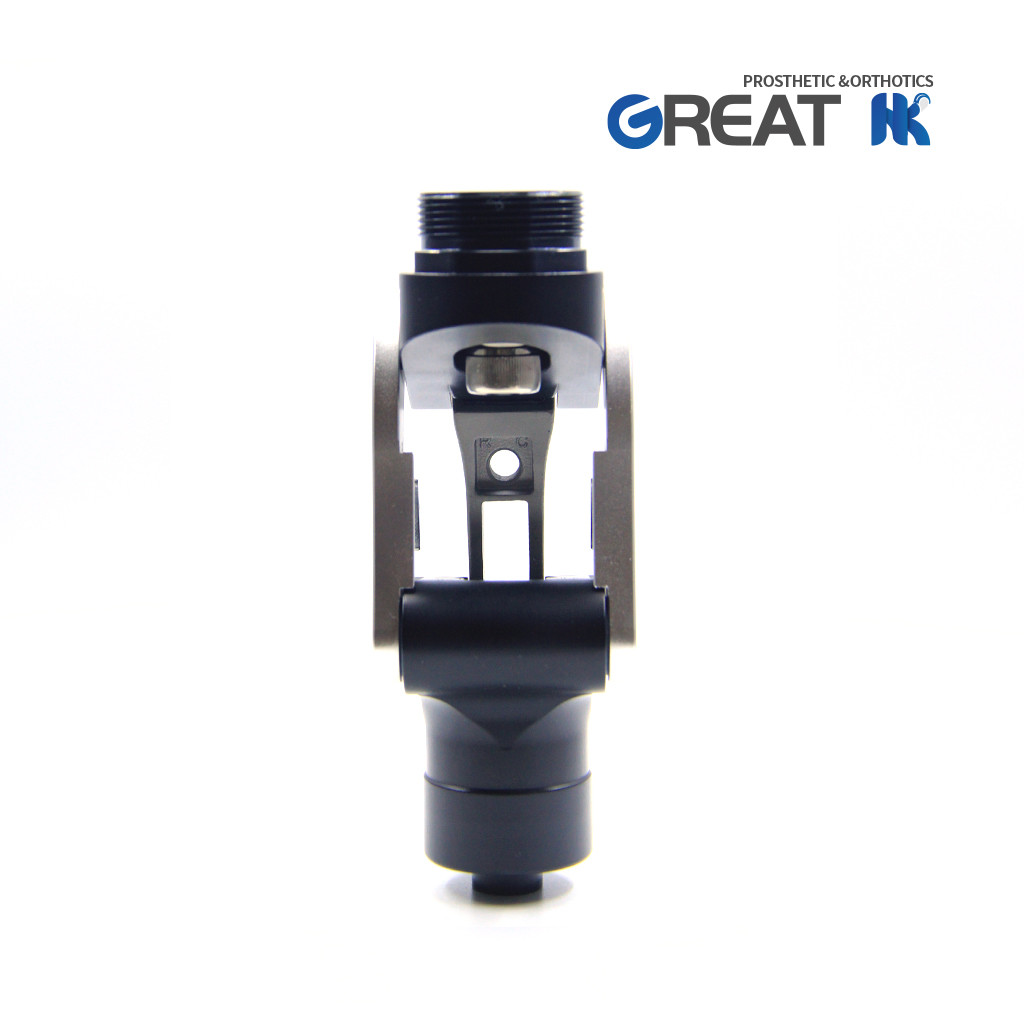

SS 17-4 M36 Thread Connection Prosthetic Knee Joint Mechanical Four Bar 2SS 17-4 M36 Thread Connection Prosthetic Knee Joint Mechanical Four Bar 3SS 17-4 M36 Thread Connection Prosthetic Knee Joint Mechanical Four Bar 4

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer, providing OEM & ODM service.

Q: How many years since your company start this business?

A: We began manufacturing prosthetics and orthotics parts since the year 2002.

Q: Did your factory Register for export and import?

A: Yes. We applied full range of documents for exportation and importation.

Q: Did your factory and products approved by any testing or certification?

A: yes. We applied CE and ISO13485 medical certification.

Q: May I apply to be one distributor or sole agent in our country to sell your products?

A: yes. This issue can be have a discussion.

Q: May I apply some free samples for testing before purchasing the full range of production?

A: Yes. sample order is acceptable. Also free sample order totally amount can’t be over USD 50.

Q: How to deal for sample order and regular order?

A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.

Q: How faster u can ship out the order?

A: For sample order normally within 3 days, regual order need to negotiate before every delivery issue settle down.

Q: Which way are acceptable for the payment?

A: TT/ Paypal / Western Union

Q: Can you provide us the best price?

A: Yes, each Item have differential pricing according to quantity.

Q:What’s your Quality warranty?

A:Regarding the the metal parts all for 2 years, For silicone is 0.5-1 year.

Q: Can we visit your factory?

A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.
