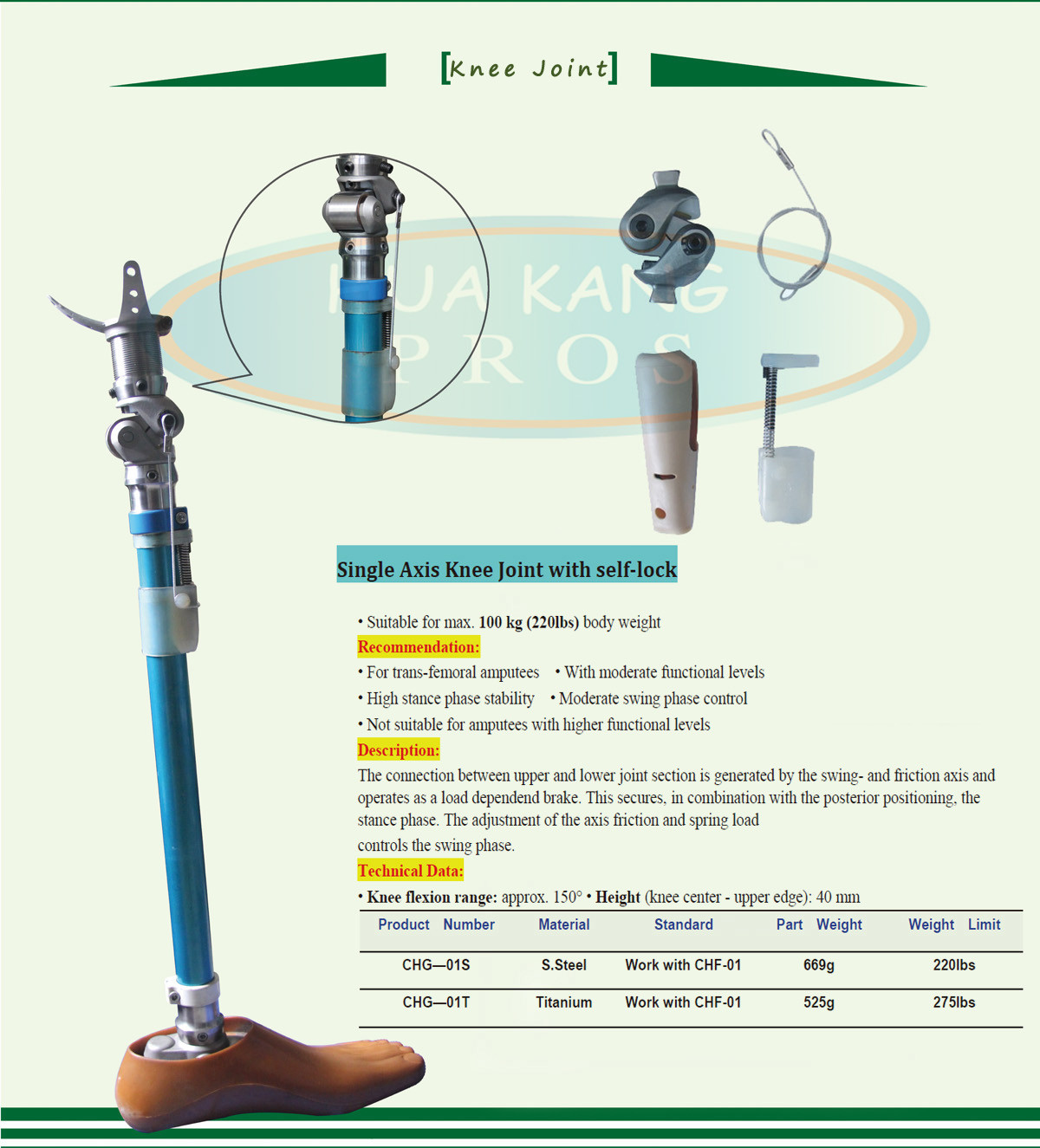

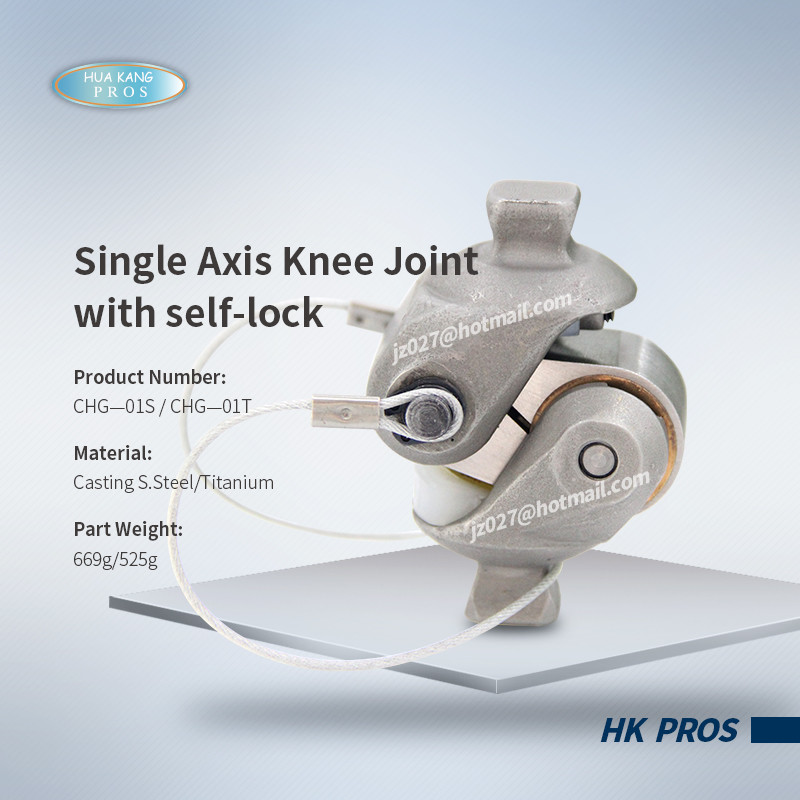

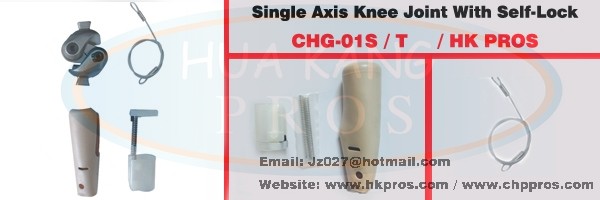

Single Axis Knee Joint with self-lock S.Steel/ Titanium,

Single Axis Knee Joint with self-lock

• Suitable for max. 100 kg (220lbs) body weight

Recommendation:

• For trans-femoral amputees • With moderate functional levels

• High stance phase stability • Moderate swing phase control

• Not suitable for amputees with higher functional levels

Description:

The connection between upper and lower joint section is generated by the swing- and friction axis and operates as a load dependend brake. This secures, in combination with the posterior positioning, the stance phase. The adjustment of the axis friction and spring load

controls the swing phase.

Technical Data:

• Knee flexion range: approx. 150° • Height (knee center - upper edge): 40 mm
