Four Bar Linkage Joint For Hip Disarticulation stainless steel Modular Mechanical

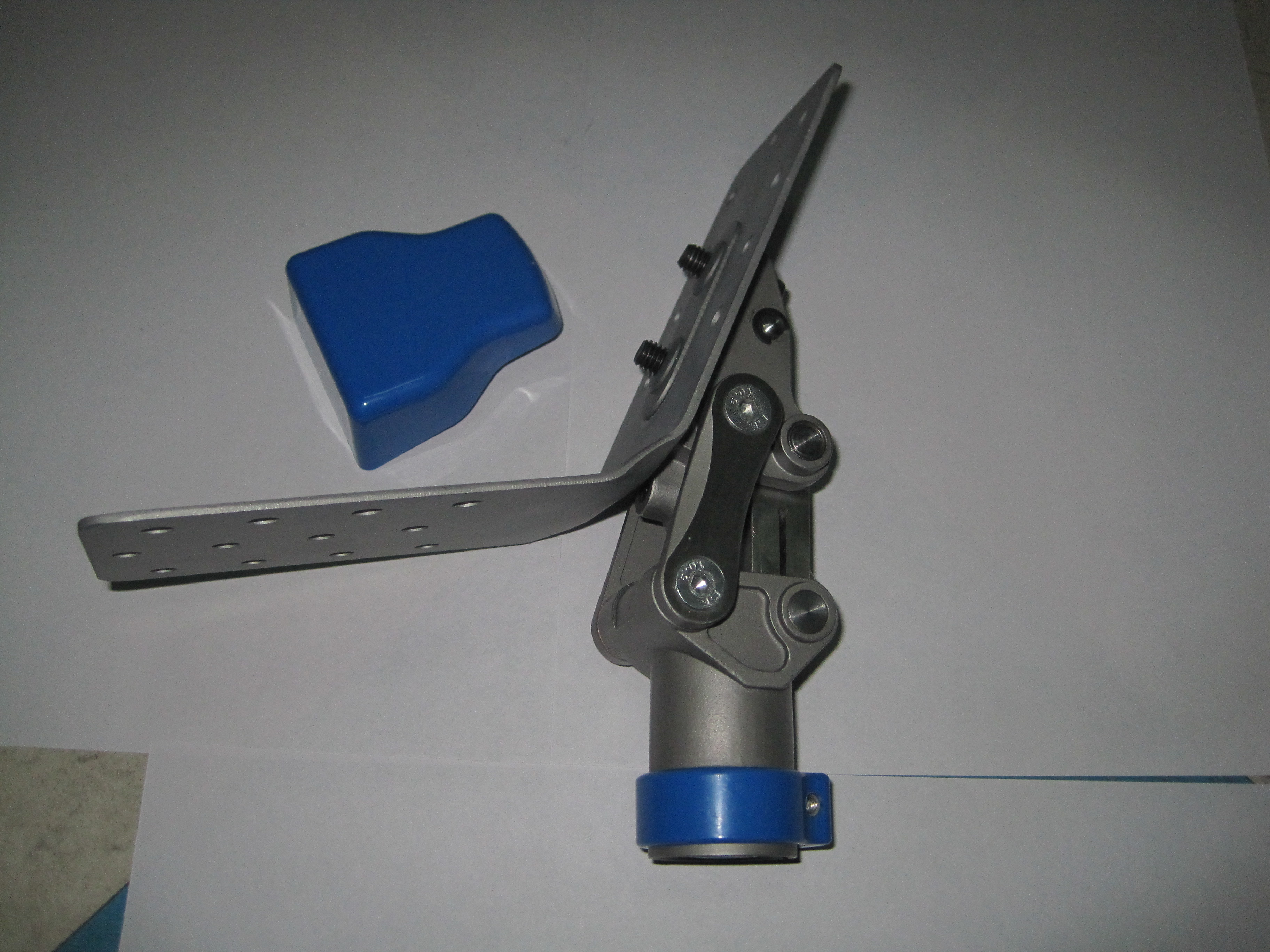

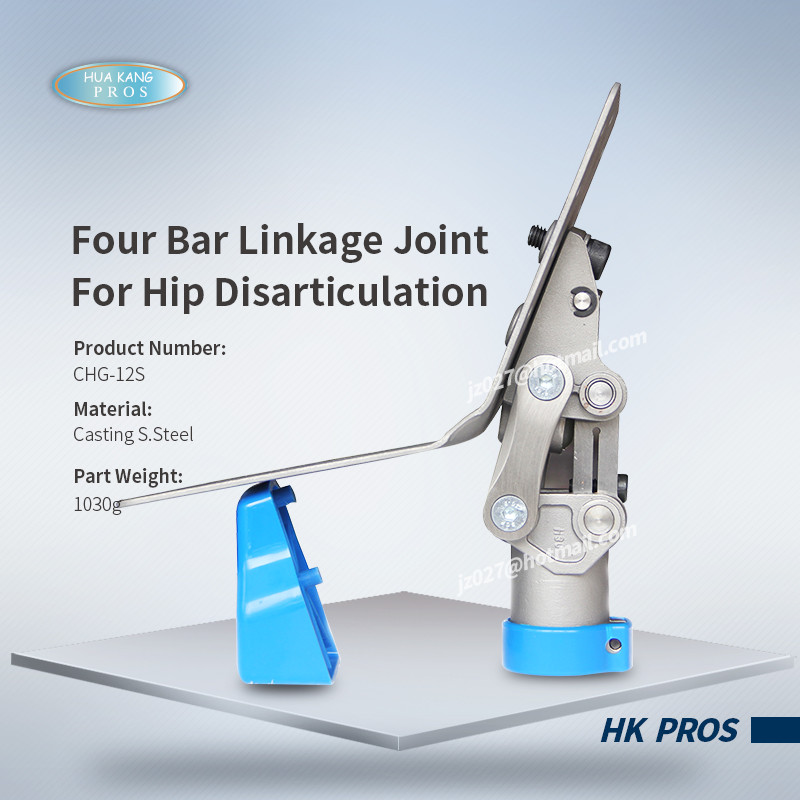

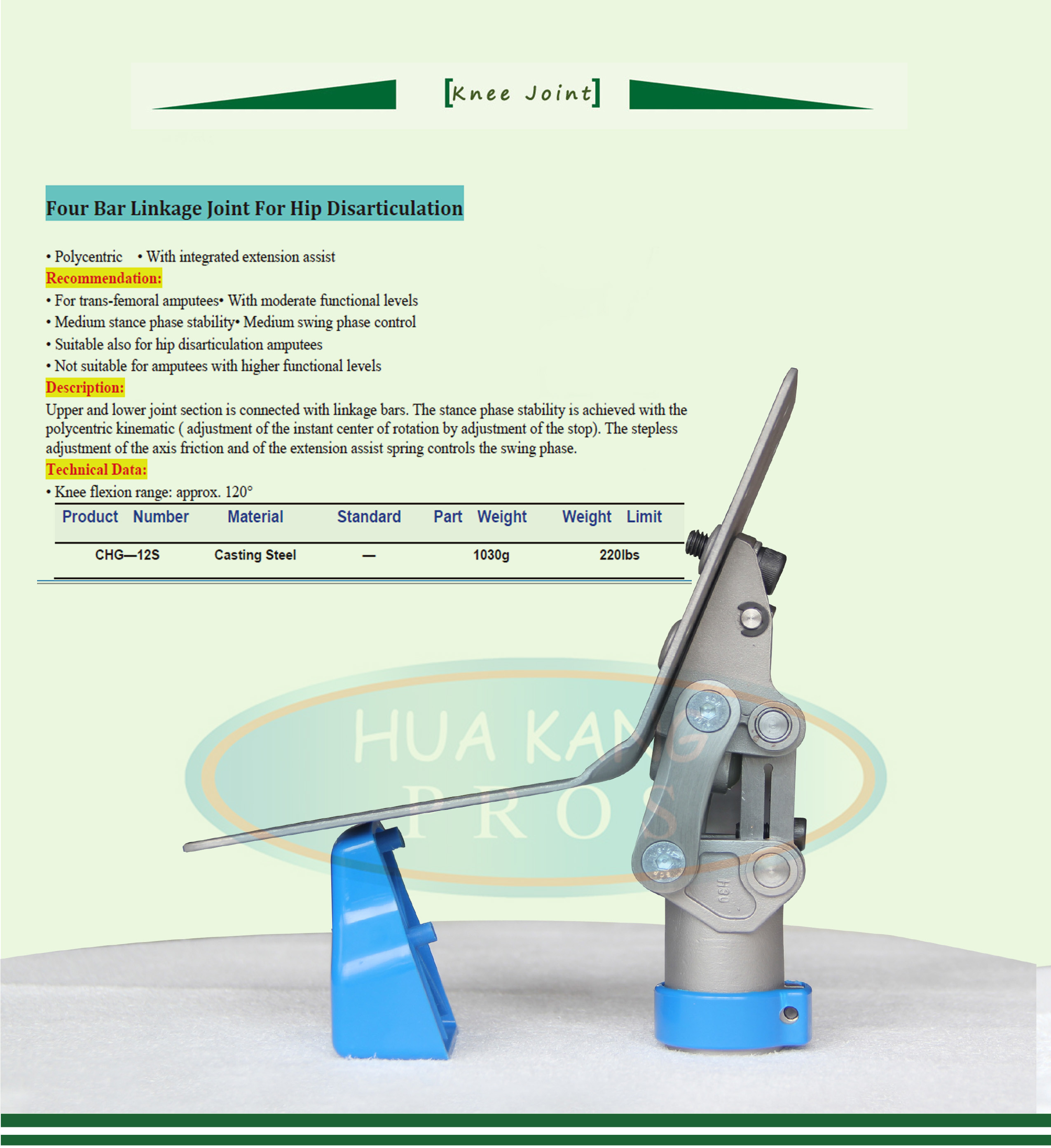

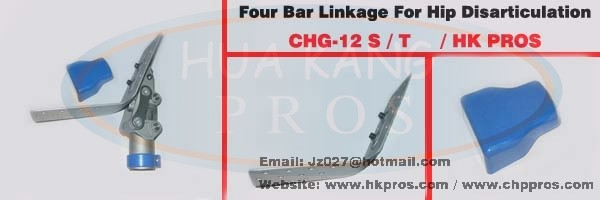

Four Bar Linkage Joint For Hip Disarticulation

• Polycentric • With integrated extension assist

Recommendation:

• For trans-femoral amputees• With moderate functional levels

• Medium stance phase stability• Medium swing phase control

• Suitable also for hip disarticulation amputees

• Not suitable for amputees with higher functional levels

Description:

Upper and lower joint section is connected with linkage bars. The stance phase stability is achieved with the polycentric kinematic ( adjustment of the instant center of rotation by adjustment of the stop). The stepless adjustment of the axis friction and of the extension assist spring controls the swing phase.

Technical Data:

• Knee flexion range: approx. 120°
